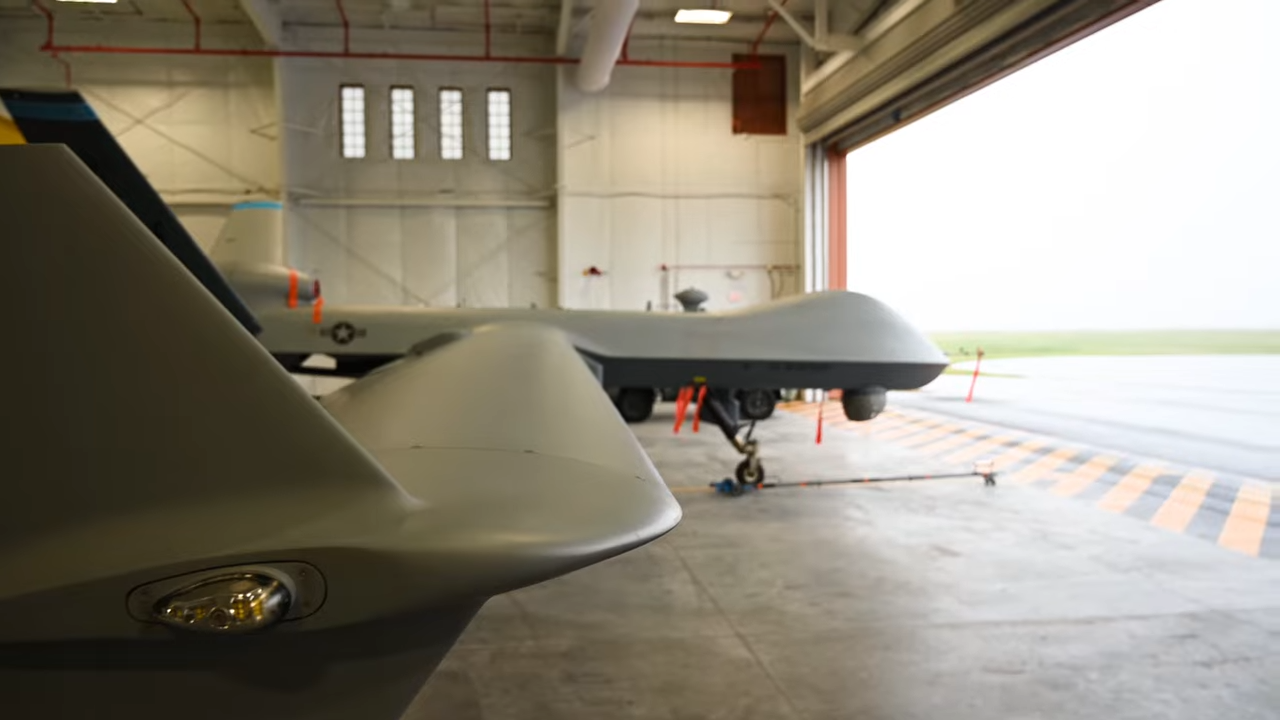

The MQ-9 Reaper UAV is a cutting-edge unmanned aerial vehicle designed to revolutionize modern warfare.
Initially developed for the United States Air Force, it has since become a critical asset in military and humanitarian missions.
General Atomics Aeronautical Systems design the Reaper as a versatile platform capable of precision strikes and extensive surveillance.
Today, let us talk about the MQ-9 Reaper UAV and everything you should know about it.
MQ-9 Reaper UAV Design and Features
Feature
Specification
Length
10.98 m
Wingspan
20.13 m
Weight (Gross)
4,767 kg
Weight (Fuel)
1,816 kg
Weight (Payload, External)
1,362 kg
Weight (Payload, Internal)
340.5 kg
Speed (Cruise)
120 kt
Speed (Max)
230 kt
Altitude
50,000 ft
Radius
3,065 km
Endurance
24 hr
Endurance (External Stores)
4-20 hr
The MQ-9 Reaper’s design focuses on maximizing efficiency while maintaining durability.
Its dimensions, 66 feet of wingspan, 36 feet in length, and 12.5 feet in height, highlight its considerable presence in the unmanned aerial vehicle (UAV) category.
The airframe is made of advanced composite materials, which reduce weight and increase structural integrity.
The construction allows the Reaper to endure challenging operational conditions and achieve aerodynamic precision.
Engine and Performance
The MQ-9 is powered by the Honeywell TPE331-10GD turboprop engine, a robust propulsion system that enables exceptional performance.
It achieves a top speed of 300 mph and operates at altitudes up to 50,000 feet.
With an endurance of over 27 hours, the UAV supports long-range missions with consistent reliability.
Engine specifications:
These capabilities make the Reaper an indispensable tool for missions requiring extended aerial presence and adaptability.
Payload and Armaments
The MQ-9’s payload flexibility sets it apart. It can carry up to 3,000 pounds (1.36 t) of armaments and equipment.
The Reaper’s sensors, which include the MTS-B targeting system, synthetic aperture radar, and laser designators, enhance precision targeting and situational awareness.
Sensor systems:
Communication and Control
The Predator Primary Satellite Link (PPSL) offers secure and seamless connectivity, while line-of-sight and beyond-line-of-sight systems provide robust command-and-control capabilities.
Communication features:
Operational Capabilities
The MQ-9 Reaper is a vital tool for intelligence, surveillance, and reconnaissance (ISR), providing real-time data crucial for high-stakes decisions in dynamic environments.
Its sophisticated sensor systems allow it to identify, track, and monitor targets over long distances, even under challenging conditions.
In precision strike missions, the Reaper’s advanced targeting systems enable it to neutralize high-value targets with exceptional accuracy, reducing the likelihood of collateral damage. Its ability to loiter over target areas for extended periods allows operators to assess situations in real-time before engaging.
It aids in search and rescue missions by providing real-time aerial imagery and monitoring. It enhances convoy overwatch operations by identifying potential threats along routes.
During raid coordination, the Reaper offers an invaluable aerial perspective, helping ground forces execute complex maneuvers effectively.
Key primary missions:
Special Applications
The MQ-9’s versatility extends into a variety of non-combat roles, demonstrating its broad operational scope. In border security, it monitors vast stretches of terrain with minimal need for human intervention, detecting unauthorized movements or potential threats efficiently.
Its endurance and advanced sensors make it a reliable asset for coastal surveillance, where it aids in tracking illegal activities and ensuring maritime safety.
Counter-narcotics operations benefit greatly from the Reaper’s endurance and advanced detection capabilities.
In disaster relief scenarios, the UAV provides high-resolution imagery of affected areas, aiding first responders in assessing damage and allocating resources quickly.
Special applications:
The MQ-9 Reaper’s operational flexibility allows it to excel in both military and humanitarian missions, addressing a wide range of challenges with precision and efficiency.
Deployment and Logistics
The MQ-9 Reaper’s design integrates modular construction, making it exceptionally adaptable for transport and assembly in various operational environments.
Its components can be disassembled and containerized, streamlining the logistics process.
The process of disassembly and reassembly ensures that the Reaper can be deployed quickly with minimal logistical complexity.
Key Transport Features:
Crew Requirements
Operating the MQ-9 requires a specialized team, typically consisting of a pilot, a sensor operator, and a mission coordinator. Each member of the crew undergoes rigorous training to manage the advanced technology and execute missions with precision.
The pilot oversees navigation and flight operations, the sensor operator controls surveillance and targeting systems, and the mission coordinator ensures the alignment of operations with strategic objectives.
The MQ-9’s advanced systems reduce the overall manpower needed for operations, allowing for efficiency without sacrificing effectiveness.
These streamlined requirements enhance its operational readiness and make it a reliable asset for modern military applications.
Global Usage and Variants
The MQ-9 Reaper has established itself as a critical asset in modern military operations, with widespread adoption by countries such as:
Each nation has integrated the Reaper into its specific operational frameworks, leveraging its capabilities for a variety of missions, including surveillance, precision strikes, and reconnaissance.
Export versions of the MQ-9 are customized to align with the requirements of allied forces, ensuring that these UAVs can seamlessly participate in joint military exercises and operations.
Its proven performance in conflict zones and humanitarian missions has further solidified its status as a critical tool in international defense arsenals.
Extended Range and Upgrades
The development of advanced variants, such as the Reaper ER (Extended Range) and MQ-9B SeaGuardian, has significantly broadened the operational capabilities of this UAV.
The Reaper ER features increased endurance, enabling it to remain airborne for longer durations, which is crucial for missions requiring sustained surveillance or extended travel distances.
The MQ-9B SeaGuardian introduces additional innovations, including enhanced maritime surveillance capabilities, improved payload options, and a focus on environmental monitoring.
Its short takeoff and landing (STOL) capabilities make it adaptable for deployment in areas with limited runway availability.
Upgraded Features:
- Increased payload capacity for diversified mission roles
- Extended operational endurance
- Adaptations for non-military applications, such as environmental monitoring
Interesting Fact: In 2024, the US State Department agreed on the sale of MQ-9s to Italy, worth $738 million.
The Bottom Line
The MQ-9 Reaper UAV has transformed modern military and humanitarian operations with its advanced design, robust capabilities, and adaptability.
Its ability to perform diverse missions efficiently, coupled with continuous advancements and global adoption, highlights its significance as a powerful tool in the evolving landscape of unmanned aerial systems.
Future developments will further enhance its role in addressing critical challenges worldwide.
